Product description

Connector type

DIN valve connectors

DIN valve connectors

Conforms to

EN175301-803

EN175301-803

Construction type

B

B

Part number

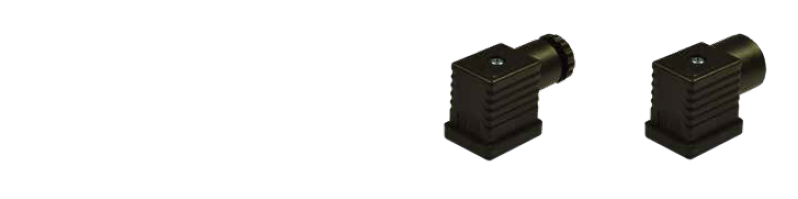

M2NS2000

M2NF2000

Description

Rectangular connector M2 series complete with gasket and fixing screw. Connector without electronic.

Rectangular connector M2 series complete with gasket and fixing screw. Connector without electronic.

Contacts spacing

10mm

10mm

Number of contacts

2poles + P.E.

2poles + P.E.

Earth positioning

H.12 (turnable)

H.12 (turnable)

Housing colour

Black

Black

Housing height

30mm

30mm

Cable gland

PG9

1/2"NPTF

Gasket type

Profiled NBR gasket

Profiled NBR gasket

Technical data

Type of termination

Screw contacts

Screw contacts

Contact screw torque

0.5 N*m

0.5 N*m

Rated voltage

250V AC/ 300VDC

250V AC/ 300VDC

Circuit type

-

-

Led colour

-

-

Suitable cable

? cable 6-8mm

? cable 6-8mm

Central fixing screw

M3 L=32.5mm

M3 L=32.5mm

Central fixing screw material

Iron+Zinc plated

Iron+Zinc plated

Central screw torque

0.5 N*m

0.5 N*m

Packaging

Qty/Box

50pcs / box

50pcs / box

Other accessories options

See accessories section

Notes:

Connector with Grey Housing: P/N M2GS2000

Connector with Grey Housing: P/N M2GF2000 Connector without press-cable screw

Product description

DIN valve connectors

DIN valve connectors

DIN valve connectors

DIN valve connectors

EN175301-803

EN175301-803

EN175301-803

EN175301-803

B

B

B

B

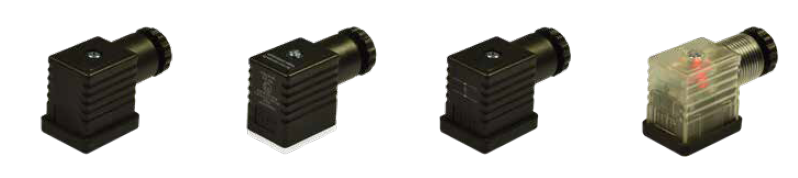

M2NS2000-UL

M2NS2000-ATEX

M2NS2D03

M2TS2L01

M2TS2L02

M2TS2L03

Rectangular connector M2 series,ULapproved, complete with gasket and fixing screw.

Connector without electronic.

Rectangular connector M2 series,ATEX conform,complete with gasket and fixing screw.

Connector without electronic.

Rectangular connector M2 series complete with gasket and fixing screw. Connector with electronic.

Rectangular connector M2 series complete with gasket and fixing screw. Connector with electronic.

10mm

10mm

10mm

10mm

2poles + P.E.

2poles + P.E.

2poles + P.E.

2poles + P.E.

H.12 (turnable)

H.12 (turnable)

H.12 (turnable)

H.12 (turnable)

Black

Black

Black

Transparent

30mm

30mm

30mm

30mm

PG9

PG9

PG9

PG9

Profiled NBR gasket

Flat Silicone gasket

Profiled NBR gasket

Profiled NBR gasket

Technical data

Screw contacts

Screw contacts

Screw contacts

Screw contacts

0.5 N*m

0.5 N*m

0.5 N*m

0.5 N*m

250V AC/ 300VDC

230V AC/ 300VDC

1-230V DC

24V AC/DC

115V AC/DC

230V AC/DC

-

-

Diode(1A)

Bipolar Led

-

-

-

Red

? cable 6-8mm

? cable 6-8mm

? cable 6-8mm

? cable 6-8mm

M3 L=32.5mm

M3 L=32.5mm

M3 L=32.5mm

M3 L=32.5mm

Iron+Zinc plated

Iron+Zinc plated

Iron+Zinc plated

Iron+Zinc plated

0.5 N*m

0.5 N*m

0.5 N*m

0.5 N*m

Packaging

50pcs / box

Singly packed in plastic bag

50pcs / box

50pcs / box

Other accessories options

See accessories section

Notes:

Connector available with different circuits.

Connector available with different led colour
