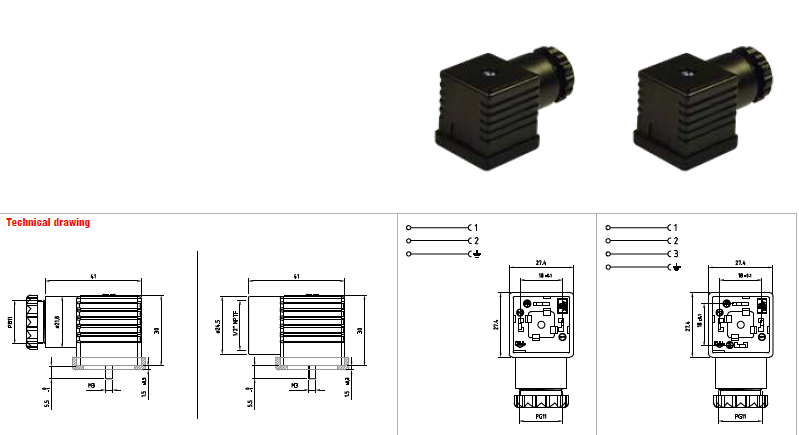

HTP A型电磁阀插头 G1NU2000 G1NU3000
产品参数
产品类别	DIN valve connectors	DIN valve connectors
国际标准	EN175301-803	EN175301-803
产品类别	A	A
型号	G1NU2000	G1NU3000
产品介绍	Square connector G1 series complete with gasket and fixing screw. Connector without electronic.	Square connector G1 series complete with gasket and fixing screw. Connector without electronic.
针距	18mm	18mm
针芯	2poles + P.E.	3poles + P.E.
接地位置	H.12 (turnable)	H.12 (turnable)
颜色	Black	Black
高度	30mm	30mm
出线口	PG11	PG11
垫片密封材质	Profiled NBR gasket	Profiled NBR gasket
Technical data
Type of termination	Screw contacts	Screw contacts
安装扭力	0.5 N*m	0.5 N*m
电压	250V AC/ 300VDC	250V AC/ 300VDC
Circuit type	-	-
Led colour	-	-
适用电缆	? cable 6-10mm	? cable 6-10mm
螺丝规格	M3 L=32.5mm	M3 L=32.5mm
Central fixing screw material	Iron+Zinc plated	Iron+Zinc plated
Central screw torque	0.5 N*m	0.5 N*m
Packaging
最小包装	50pcs / box	50pcs / box
Other accessories options
See accessories section
Notes:	Connector with Grey Housing: P/N G1GU2000	Connector with Grey Housing: P/N G1GU3000
