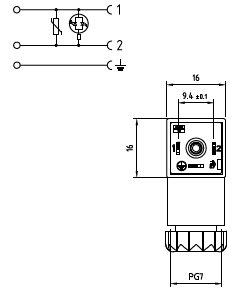

Technical drawing

Product description

Connector type

DIN valve connectors

DIN valve connectors

DIN valve connectors

Conforms to

Industrial

Industrial

Industrial

Construction type

C

C

C

Part number

P2TZ2L01

P2TZ2L02

P2TZ2L03

P2TZ2DL1

P2TZ2DL2

P2TZ2DL3

P2TZ2VL1

P2TZ2VL2

P2TZ2VL3

Description

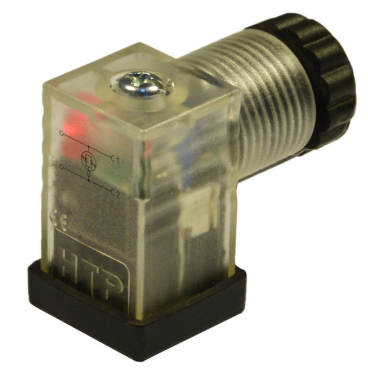

Square micro connector P2 series complete with gasket and fixing screw. Connector with electronic.

Square micro connector P2 series complete with gasket and fixing screw. Connector with electronic.

Square micro connector P2 series complete with gasket and fixing screw. Connector with electronic.

Contacts spacing

9.4mm

9.4mm

9.4mm

Number of contacts

2poles + P.E.

2poles + P.E.

2poles + P.E.

Earth positioning

H.6 (turnable)

H.6 (turnable)

H.6 (turnable)

Housing colour

Transparent

Transparent

Transparent

Housing height

26mm

26mm

26mm

Cable gland

PG7

PG7

PG7

Gasket type

Profiled NBR gasket

Profiled NBR gasket

Profiled NBR gasket

Technical data

Type of termination

Screw contacts

Screw contacts

Screw contacts

Contact screw torque

0.25 N*m

0.25 N*m

0.25 N*m

Rated voltage

24V AC/DC

115V AC/DC

230V AC/DC

24V DC

115V DC

230V DC

24V AC/DC

115V AC/DC

230V AC/DC

Circuit type

Bipolar led

Led + Diode(1A)

Bipolar Led + Varistor

Led colour

Red

Red

Red

Suitable cable

? cable 4-6mm

? cable 4-6mm

? cable 4-6mm

Central fixing screw

M3 L=28mm

M3 L=28mm

M3 L=28mm

Central fixing screw material

Iron+Zinc plated

Iron+Zinc plated

Iron+Zinc plated

Central screw torque

0.5 N*m

0.5 N*m

0.5 N*m

Packaging

Qty/Box

100pcs / box

100pcs / box

100pcs / box

Other accessories options

See accessories section

Notes:

Connector available with different led colour

Connector available with different led colour

Connector available with different led colour
