Technical drawing

Product description

Connector type

DIN valve connectors

DIN valve connectors

Conforms to

Industrial

Industrial

Construction type

B

B

Part number

M1NS2000

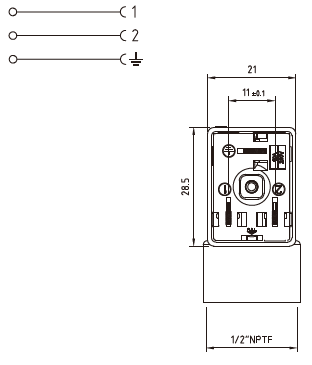

M1NF2000

Description

Rectangular connector M1 series complete with gasket and fixing screw. Connector without electronic.

Rectangular connector M1 series complete with gasket and fixing screw. Connector without electronic.

Contacts spacing

11mm

11mm

Number of contacts

2poles + P.E.

2poles + P.E.

Earth positioning

H.12 (turnable)

H.12 (turnable)

Housing colour

Black

Black

Housing height

30mm

30mm

Cable gland

PG9

1/2" NPTF

Gasket type

Profiled NBR gasket

Profiled NBR gasket

Technical data

Type of termination

Screw contacts

Screw contacts

Contact screw torque

0.5 N*m

0.5 N*m

Rated voltage

250V AC/ 300VDC

250V AC/ 300VDC

Circuit type

-

-

Led colour

-

-

Suitable cable

? cable 6-8mm

? cable 8-10mm

Central fixing screw

M3 L=32.5mm

M3 L=32.5mm

Central fixing screw material

Iron+Zinc plated

Iron+Zinc plated

Central screw torque

0.5 N*m

0.5 N*m

Packaging

Qty/Box

50pcs / box

50pcs / box

Other accessories options

See accessories section

Notes:

Connector with Grey Housing: P/N M1GS2000

Connector with Grey Housing: P/N M1GF2000 Connector without press-cable screw

Product description

DIN valve connectors

DIN valve connectors

DIN valve connectors

Industrial

Industrial

Industrial

B

B

B

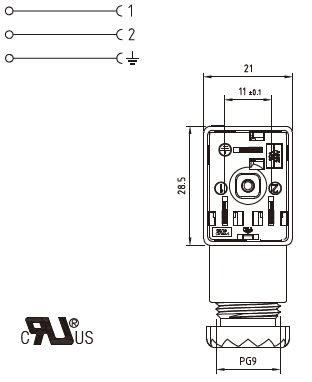

M1NS2000-UL

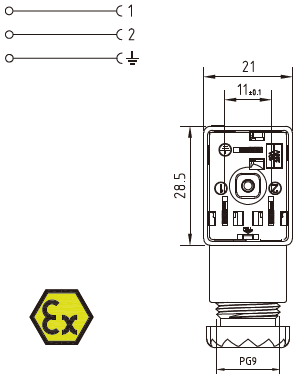

M1NS2000-ATEX

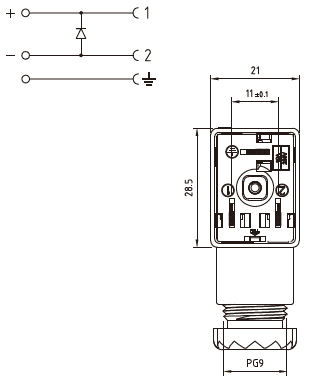

M1NS2D03

Rectangular connector M1 series,ULapproved, complete with gasket and fixing screw.

Connector without electronic.

Rectangular connector M1 series,ATEX conform,complete with gasket and fixing screw.

Connector without electronic.

Rectangular connector M1 series complete with gasket and fixing screw. Connector with electronic.

11mm

11mm

11mm

2poles + P.E.

2poles + P.E.

2poles + P.E.

H.12 (turnable)

H.12 (turnable)

H.12 (turnable)

Black

Black

Black

30mm

30mm

30mm

PG9

PG9

PG9

Profiled NBR gasket

Flat Silicone gasket

Profiled NBR gasket

Technical data

Screw contacts

Screw contacts

Screw contacts

0.5 N*m

0.5 N*m

0.5 N*m

250V AC/ 300VDC

230V AC/ 300VDC

1-230V DC

-

-

Diode(1A)

-

-

-

? cable 6-8mm

? cable 6-8mm

? cable 6-8mm

M3 L=32.5mm

M3 L=32.5mm

M3 L=32.5mm

Iron+Zinc plated

Iron+Zinc plated

Iron+Zinc plated

0.5 N*m

0.5 N*m

0.5 N*m

Packaging

50pcs / box

Singly paked in plastic bag

50pcs / box

Other accessories options

See accessories section

Notes:

Connector available with different circuits.

Product description

DIN valve connectors

DIN valve connectors

Industrial

Industrial

B

B

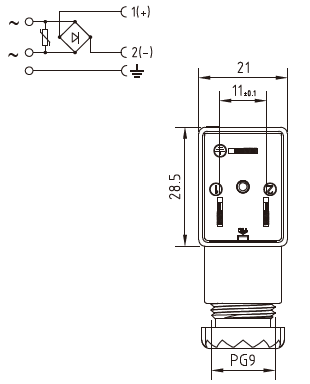

M1NS2RV1

M1NS2RV2

M1NS2RV3

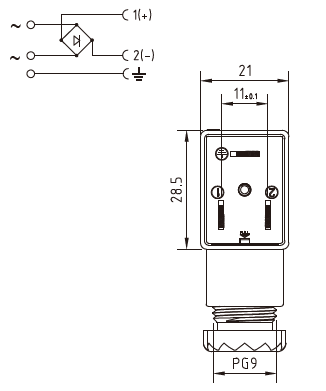

M1NS2R03

Rectangular connector M1 series complete with gasket and fixing screw. Connector with electronic.

Rectangular connector M1 series complete with gasket and fixing screw. Connector with electronic.

11mm

11mm

2poles + P.E.

2poles + P.E.

H.12 (turnable)

H.12 (turnable)

Black

Transparent

30mm

30mm

PG9

PG9

Profiled NBR gasket

Profiled NBR gasket

Technical data

Screw contacts

Screw contacts

0.5 N*m

0.5 N*m

24V AC

115V AC

230V AC

1-230V

Full-Wave Bridge Rectifier + Varistor

Full-Wave Bridge Rectifier + Varistor + Led

-

Red

? cable 6-8mm

? cable 6-8mm

M3 L=32.5mm

M3 L=32.5mm

Iron+Zinc plated

Iron+Zinc plated

0.5 N*m

0.5 N*m

Packaging

50pcs / box

50pcs / box

Other accessories options

See accessories section

Notes:

Connector available with different led colour
